The Evolution of Visible Air

Share This:

Ahead of Air Max Day on the 26th March, David Forlan from Nike has taken an in-depth look at the Air Max family…

In 1987, Nike Air was not a new proposition. Runners were already familiar with the benefits of the cushioning technology, which first appeared in the Nike Tailwind in 1978. But seeing is believing.

Nike Air hit a high when it became more than a feeling. Nike designer Tinker Hatfield set out to make the breakthrough technology visible so runners could better understand its cushioning benefits. He created the Nike Air Max with Visible Air, which gave birth to a franchise that forever altered the course of sneakers.

nike-air-max-history

The story of visible air didn’t begin with Hatfield’s design. Rather, it started when David Forland, Nike’s Director of Cushioning Innovation, joined the team in 1985. In many respects, Forland is the world’s foremost expert in visible air. He’s been focused on pushing the technology into unexplored new territories for the past 30 years.

He’s also the first to admit that the road to Air Max had its share of obstacles. In the ‘80s, Forland constructed encapsulated Air-Sole prototypes by hand. He stumbled upon a critical moment in visible air history when he rotated the bag, placing the seams on the top and bottom instead of on the perimeter.

“At that exact moment the light bulb turned on. I built a new prototype right there on the spot.” – David Forland

ANATOMY_OF_AIR_INDIVIDUALS_JPEG_EXE_AM1_native_1600

And thus, the first prototype of visible Nike Air technology was born, and the Nike Air Max 1 became the first shoe to showcase it. Prior to this breakthrough, Nike Air-Soles were getting thinner, not larger.

ANATOMY_OF_AIR_INDIVIDUALS_JPEG_EXE_AM90_native_1600

“Air-Sole units were becoming thinner and thinner to make the manufacturing process easier. We wanted to get back to  injecting more air in to the sole to achieve a strong cushioning sensation under the foot.” – David Forland

In an effort to increase the sensory perception of walking on air, Forland quickly changed the approach.

“If you look at the history of Air Max, especially from 1987 to 1993, one of the main differences among models was each version held a greater volume of air than the last one, and conversely the least amount of foam. Foam breaks down; air doesn’t.” – David Forland

During the pursuit of increased air volume, Forland had another aha moment. Eliminating the foam between the outsole and the Air-Sole unit might create space for increased Air-Sole volume. With that idea came the Nike Air Max 180, the first shoe to feature a 180-degree visible Air-Sole — which was no easy task for Forland.

ANATOMY_OF_AIR_INDIVIDUALS_JPEG_EXE_AM180_native_1600

“The idea was much easier said than done. The Air Max 180 was one of the most difficult Air Max sneakers to create.” – David Forland

At that point, the Air Max 1, Air Max 180 and Air Max 90 all featured Air-Sole units in the forefoot that were encapsulated in foam. As the quest for a fully foamless running sneaker continued, the team made a monumental discovery: a new Air-Sole construction method called blow molding.

ANATOMY_OF_AIR_INDIVIDUALS_JPEG_EXE_AM93_native_1600

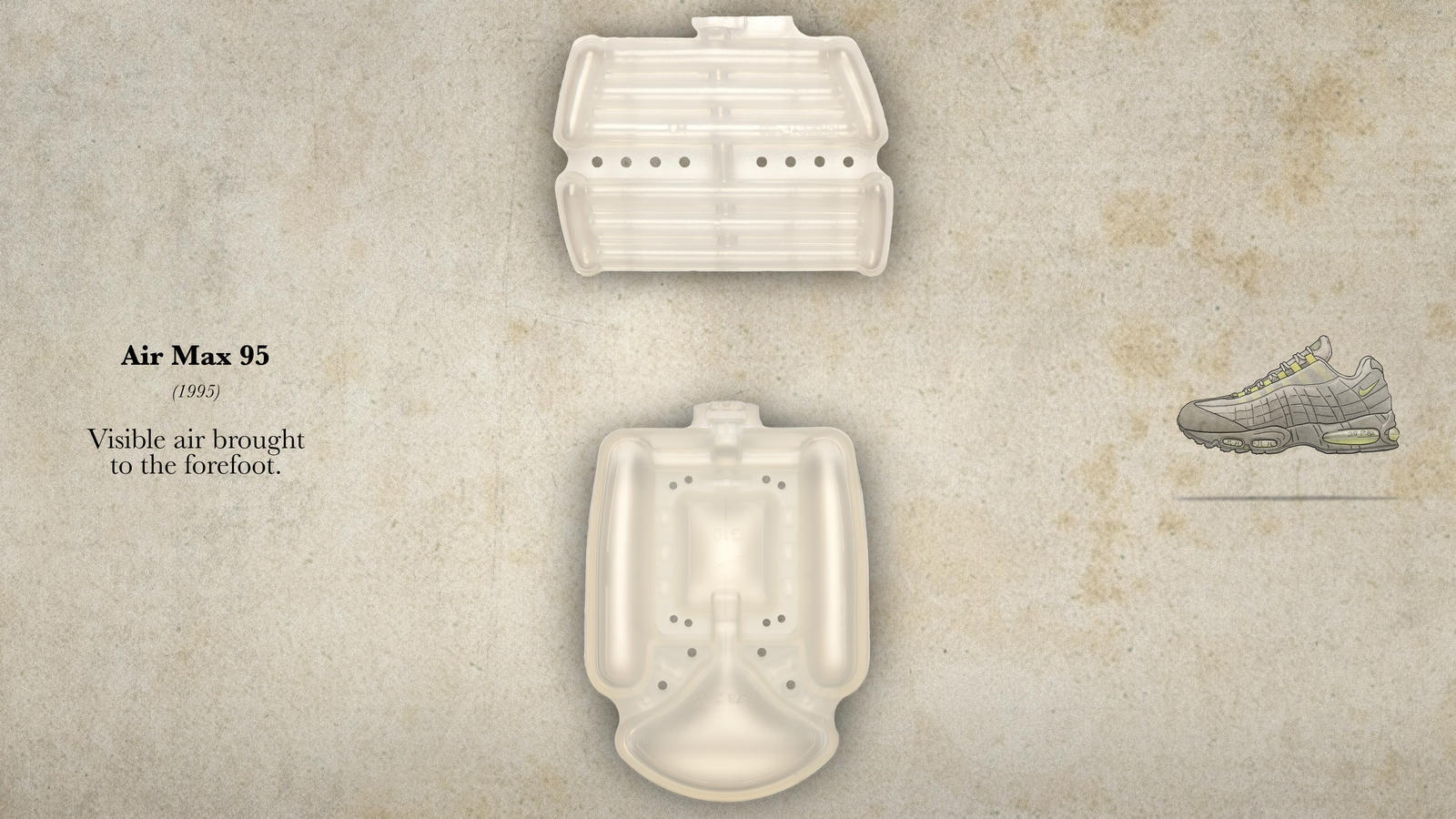

First used on the Nike Air Max 93, this technique allowed for the creation of Air-Soles in 3-D shapes that didn’t depend on air pressure. Now, Air-Soles could be crafted to fit the curvature of the shoe’s forefoot. Taking full advantage of the innovation, the Nike Air Max 95, which consisted of two separate blow-molded Air-Sole units, was the first manifestation of visible air in the forefoot.

ANATOMY_OF_AIR_INDIVIDUALS_JPEG_EXE_AM95_native_1600

In 1997, Nike designers and developers cracked the code on how to create a full-length Air-Sole, making a monumental leap forward toward the goal of a fully foamless Air Max. The first step was to construct an interconnected heel and forefoot unit. The next task was to figure out how to hold the molten film long enough to close a full-length 3-D mold around it. Many prototypes and one bullet train later, the Air Max 97 came into existence.

ANATOMY_OF_AIR_INDIVIDUALS_JPEG_EXE_AM97_native_1600

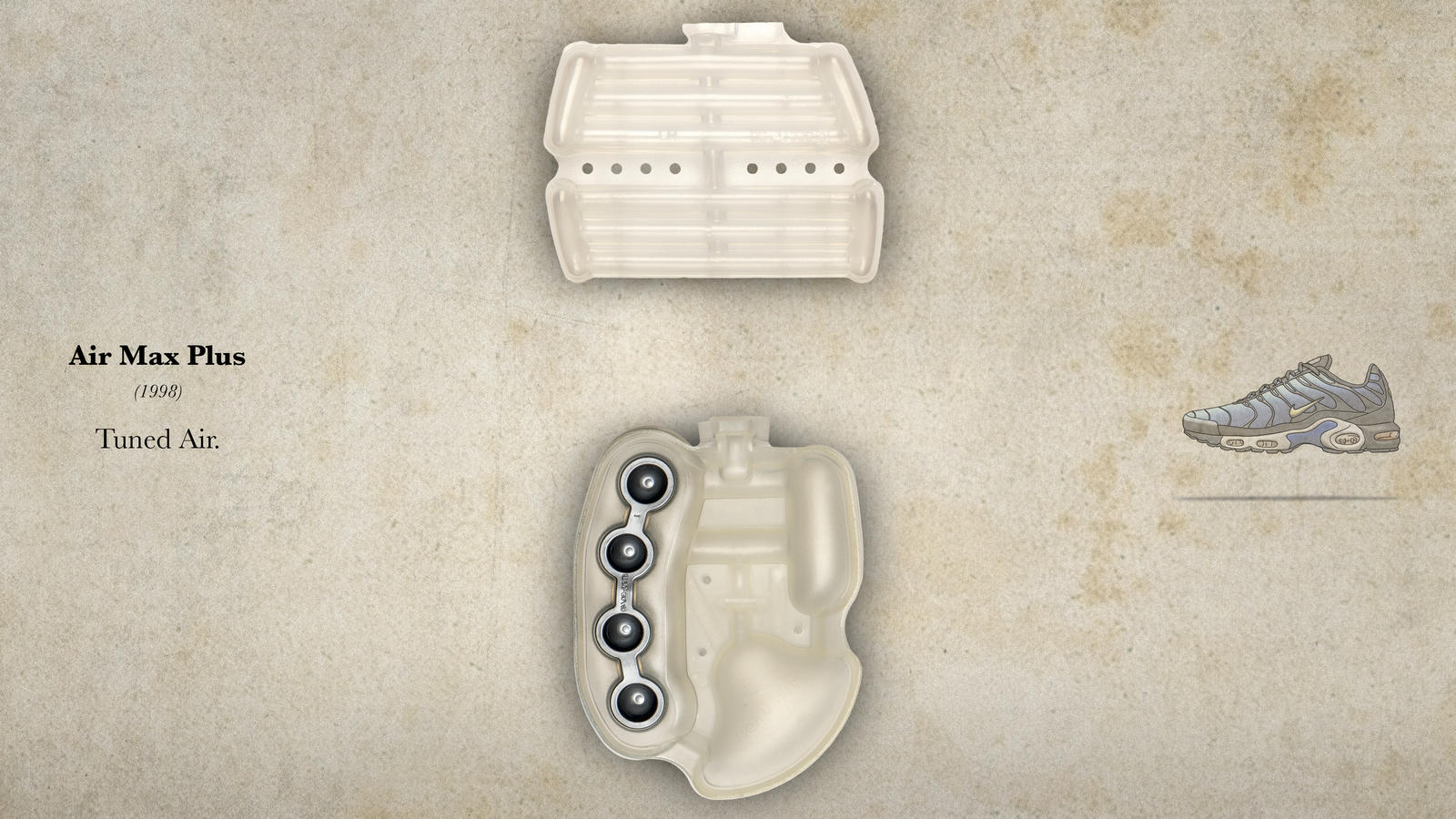

After unlocking full-length air, ideas around air seemed endless. Nike began to focus on other forms of cushioning, one of which was Tuned Air. This innovative play on air cushioning first debuted on the 1999 Nike Air Max Plus and used physical structures to augment the stability of Nike Max Air cushioning.

ANATOMY_OF_AIR_INDIVIDUALS_JPEG_EXE_AMPLUS_native_1600

The next advancement came with the Air Max 360 in 2006, which finally attained the goal of a foamless shoe — nearly 20 years after the first Air Max. To create the Air Max 360, Forland’s team utilized Caged Air technology instead of foam as the stabilizer.

ANATOMY_OF_AIR_INDIVIDUALS_JPEG_EXE_AM360_native_1600

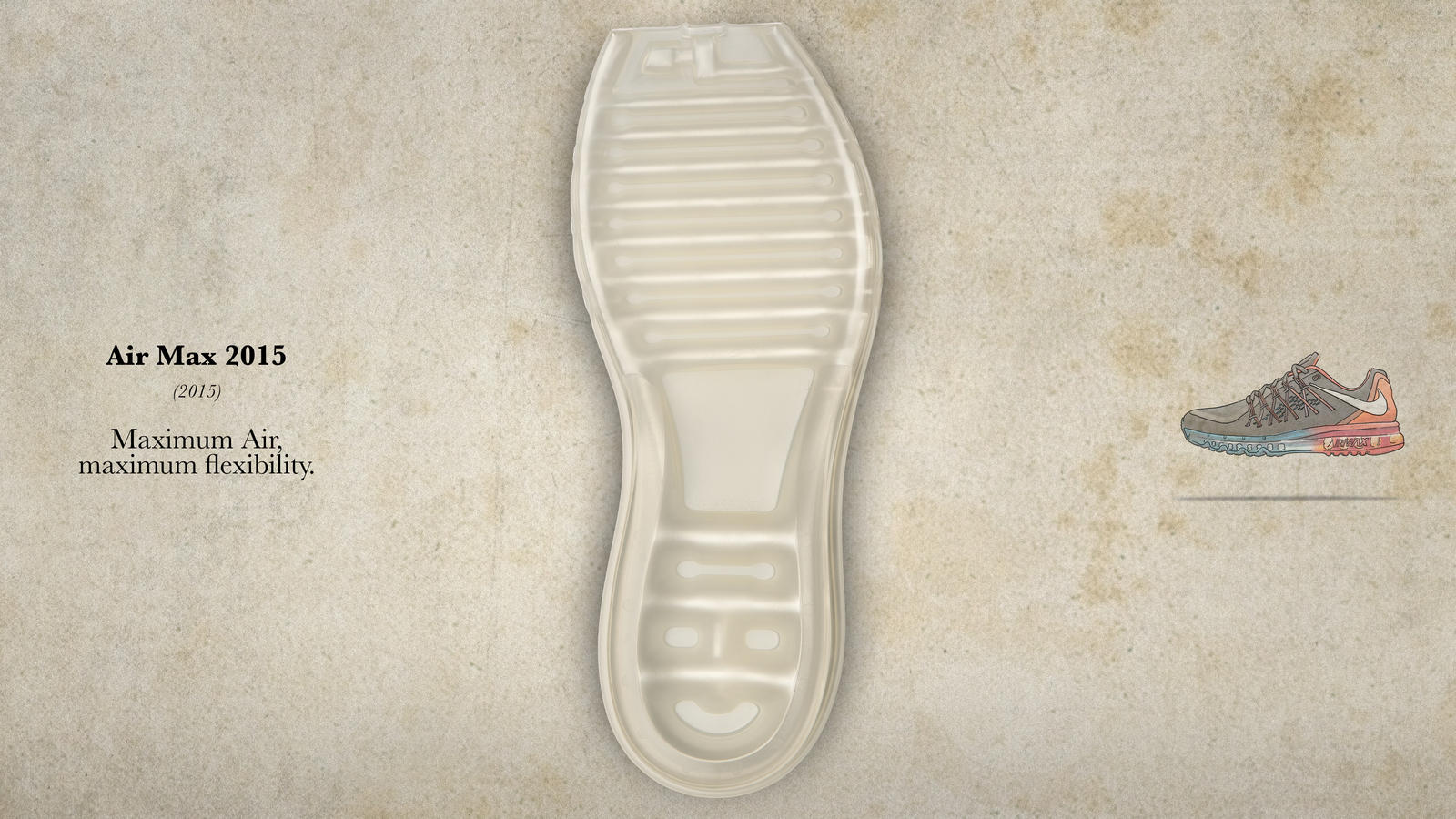

The all-air accomplishment did not mark the end of Air Max evolution. Forland’s team had fulfilled its mission, but they could not resist the question of how to further improve the franchise. Forland and the team shifted focus from eliminating foam to increasing flexibility. Utilizing tubular construction, they built deep flex grooves into the Air-Soles of the Nike Air Max 2015, resulting in the most flexible Max Air cushioning platform ever.

ANATOMY_OF_AIR_INDIVIDUALS_JPEG_EXE_AM2015_native_1600

After the long journey, Forland learned that innovation doesn’t come without risk.

“I remember the first blow-molded Air-Sole unit. We worked so hard on that and had no idea if people would embrace it. I was at an airport right around the time the first Air Max sneaker launched. I was calling a tech in the lab when someone walked by wearing a pair. I stared at him from the phone booth and said, ‘Somebody bought them. I see the Air-Sole going up and down.’ It was a big risk, but bigger reward. For the Air Max family, it’s only up from here.” – David Forland
